Rules Extractor¶
WoodTapper rules extraction modules enables seamless integration of interpretable rule extraction into existing machine learning workflows. Here are an example on Iris data set.
Import modules¶
First, import necessary modules:
import pandas as pd
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split
from sklearn.metrics import average_precision_score, accuracy_score,roc_auc_score
from woodtapper.extract_rules import SirusClassifier
from woodtapper.extract_rules.visualization import show_rules
Load data¶
iris = load_iris()
X = pd.DataFrame(iris.data, columns=iris.feature_names )
y = iris.target
X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=0)
Train SirusClassifier¶
## RandomForestClassifier rules extraction
RFSirus = SirusClassifier(n_estimators=1000,max_depth=2,quantile=10,p0=0.0,max_n_rules=25, random_state=0,splitter="quantile")
RFSirus.fit(X_train,y_train)
Predictions¶
y_pred_sirus = RFSirus.predict(X_test)
y_pred_proba_sirus = RFSirus.predict_proba(X_test)
print('PR AUC :', average_precision_score(y_test, y_pred_proba_sirus))
print('ROC AUC :', roc_auc_score(y_test, y_pred_proba_sirus,average='micro',multi_class='ovr'))
print('Accuracy :', accuracy_score(y_test, y_pred_sirus))

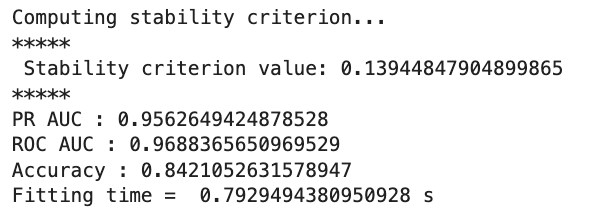

Output
Computing stability criterion...
*****
Stability criterion value: 0.13944847904899865
*****
PR AUC : 0.9562649424878528
ROC AUC : 0.9688365650969529
Accuracy : 0.8421052631578947
Fitting time = 1.2483680248260498 s
Rules illustration¶
The rules are the same for all three classes but the output probabilities are specific to each class:

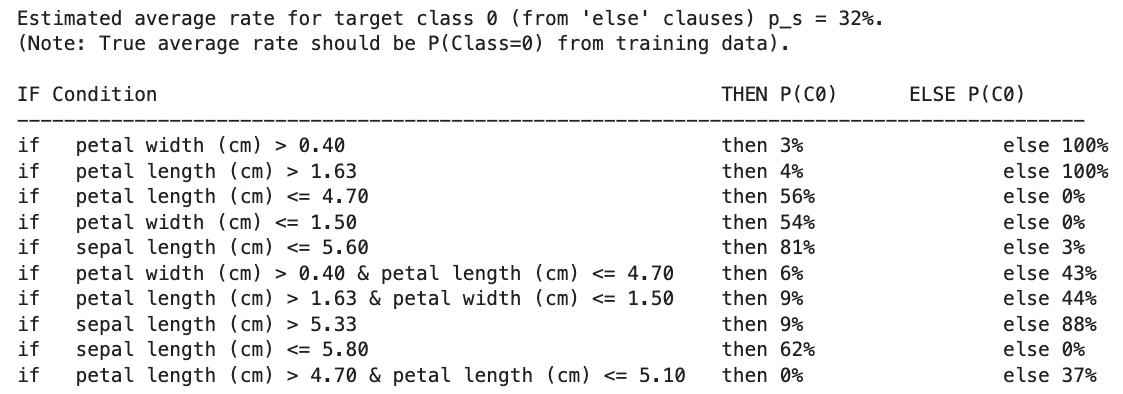

show_rules(RFSirus,max_rules=10,target_class_index=0) ## show class Y=0
Output
Estimated average rate for target class 0 (from 'else' clauses) p_s = 32%.
(Note: True average rate should be P(Class=0) from training data).
Condition THEN P(C0) ELSE P(C0)
-------------------------------------------------------------------------------------------
if petal width (cm) > 0.40 then 3% else 100%
if petal length (cm) > 1.63 then 4% else 100%
if petal length (cm) <= 4.70 then 56% else 0%
if petal width (cm) <= 1.50 then 54% else 0%
if sepal length (cm) <= 5.60 then 81% else 3%
if petal width (cm) > 0.40 & petal length (cm) <= 4.70 then 6% else 43%
if petal length (cm) > 1.63 & petal width (cm) <= 1.50 then 9% else 44%
if sepal length (cm) > 5.33 then 9% else 88%
if sepal length (cm) <= 5.80 then 62% else 0%
if petal length (cm) > 4.70 & petal length (cm) <= 5.10 then 0% else 37%

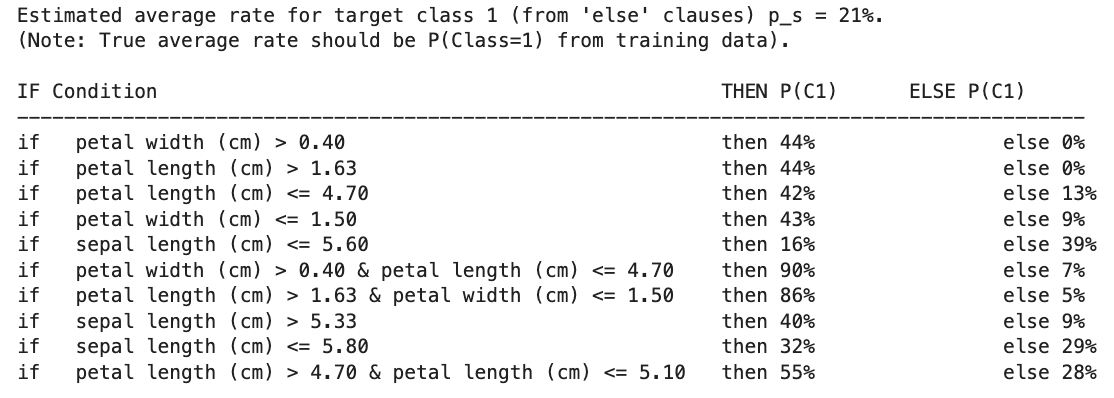

show_rules(RFSirus,max_rules=10,target_class_index=1) ## show class Y=1 through target_class_index=1 argument
Output
Estimated average rate for target class 1 (from 'else' clauses) p_s = 21%.
(Note: True average rate should be P(Class=1) from training data).
Condition THEN P(C1) ELSE P(C1)
-------------------------------------------------------------------------------------------
if petal width (cm) > 0.40 then 44% else 0%
if petal length (cm) > 1.63 then 44% else 0%
if petal length (cm) <= 4.70 then 42% else 13%
if petal width (cm) <= 1.50 then 43% else 9%
if sepal length (cm) <= 5.60 then 16% else 39%
if petal width (cm) > 0.40 & petal length (cm) <= 4.70 then 90% else 7%
if petal length (cm) > 1.63 & petal width (cm) <= 1.50 then 86% else 5%
if sepal length (cm) > 5.33 then 40% else 9%
if sepal length (cm) <= 5.80 then 32% else 29%
if petal length (cm) > 4.70 & petal length (cm) <= 5.10 then 55% else 28%

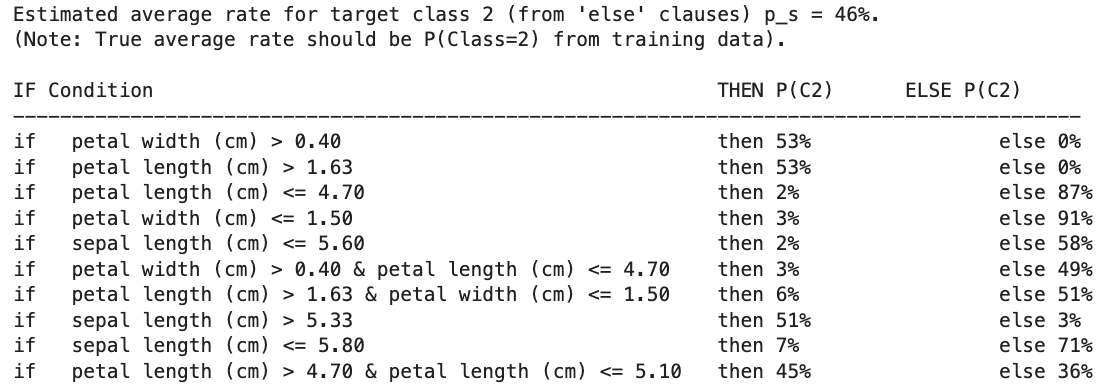

show_rules(RFSirus,max_rules=10,target_class_index=2) ## show class Y=2
Output
Estimated average rate for target class 2 (from 'else' clauses) p_s = 46%.
(Note: True average rate should be P(Class=2) from training data).
Condition THEN P(C2) ELSE P(C2)
-------------------------------------------------------------------------------------------
if petal width (cm) > 0.40 then 53% else 0%
if petal length (cm) > 1.63 then 53% else 0%
if petal length (cm) <= 4.70 then 2% else 87%
if petal width (cm) <= 1.50 then 3% else 91%
if sepal length (cm) <= 5.60 then 2% else 58%
if petal width (cm) > 0.40 & petal length (cm) <= 4.70 then 3% else 49%
if petal length (cm) > 1.63 & petal width (cm) <= 1.50 then 6% else 51%
if sepal length (cm) > 5.33 then 51% else 3%
if sepal length (cm) <= 5.80 then 7% else 71%
if petal length (cm) > 4.70 & petal length (cm) <= 5.10 then 45% else 36%
